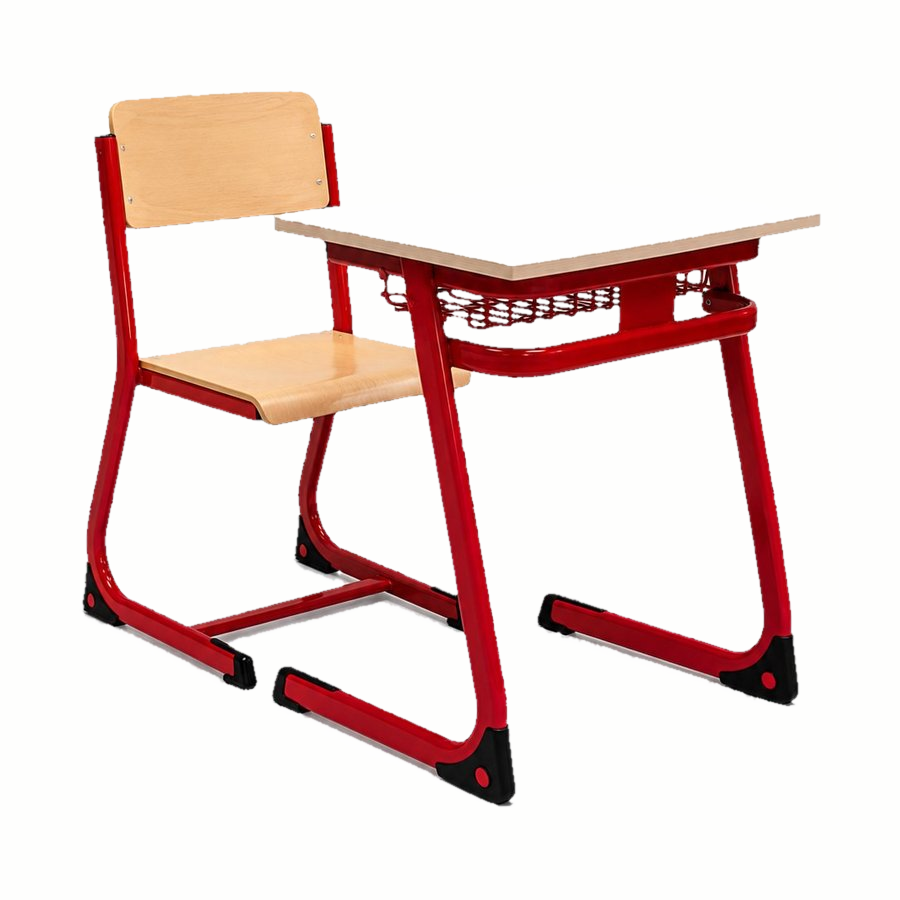

HZ-CD-101 — set view: desk with matching wood-shell chair

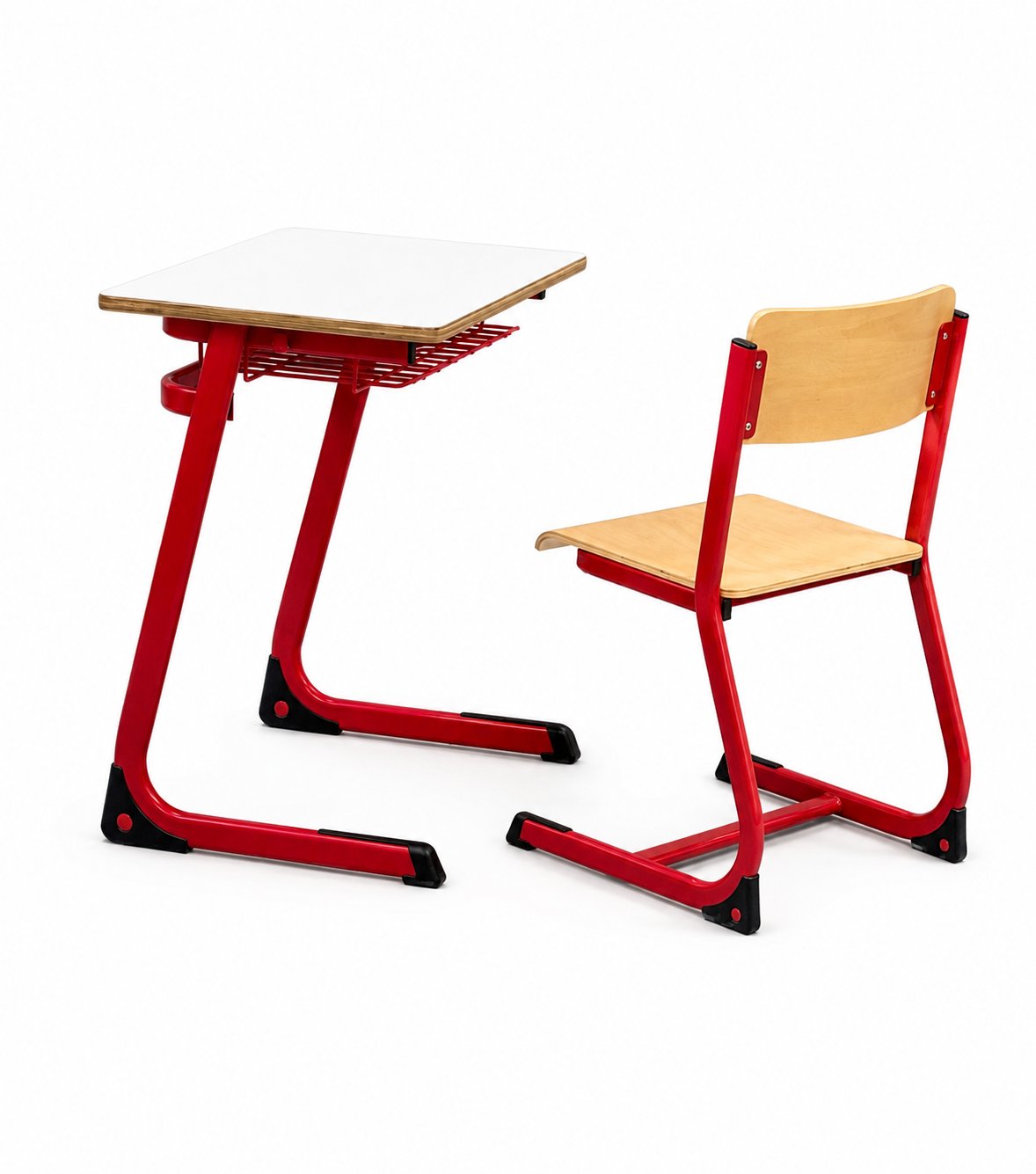

HZ-CD-101 — 3/4 front view: desk + chair ensemble

— HZ-CD-101

Steel-frame student desk
Wood-shell chair

The HZ-CD-101 pairs a classic powder-coated steel cantilever frame with a plywood desk top and a curved beech-plywood chair shell. Both desk and chair are designed for high-rotation classrooms — MIG-welded steel joints, integrated under-desk wire basket, anti-slip floor caps. Frame available in red (standard), blue, gray, white, and other RAL colours; plywood shell available in natural beech or walnut stain.

Desk top (W×D)

650 × 450 mm

Desk height

760 mm (EN 1729 size 6)

Top material

Plywood, lacquered

Chair shell

9-ply beech plywood

Frame

Steel, powder-coated

Standards

EN 1729 · BIFMA · ISO 9001

Plywood shellPlywood topSteel frameEN 1729Single seatBIFMA

Request Quote → Request Sample

— Technical specifications

Steel-frame student desk · Wood-shell chair

650×450 mm

Desk top W × D

760 mm

Desk height (size 6)

Ø 32 mm

Frame tube dia.

Epoxy powder coat

Frame finish

9-ply plywood

Top material

9-ply beech plywood

Chair shell

100 kg static

Load capacity

≈ 12 kg / set

Set weight (knocked-down)

— Engineering highlights

Built for institutional use.

— 01

7-stage anti-rust treatment

Every steel tube undergoes degreasing, shot blasting, phosphating, electrostatic powder coating, and high-temperature curing at 200 °C. The finish withstands tropical humidity, coastal salt air, and daily cleaning with standard disinfectants.

— 02

Beech plywood shell

Nine cross-grain layers of beech veneer are hot-pressed under a CNC-cut mould and finished with low-VOC water-based lacquer. The shell flexes naturally with student movement without losing its ergonomic curve.

— 03

Welded steel joints

All frame intersections are MIG-welded and ground smooth, then powder-coated to hide seams. No exposed fasteners on the chair frame; the desk uses only countersunk bolts at the top-to-frame interface.

— 04

Container-loading optimised

Both desk and chair ship knocked-down for efficient density (≈ 240 sets per 40HQ). On-site reassembly takes under 5 minutes per unit using the included Allen key.

Ready to order?

Send your specs — quote in 24 hours.

Share your project quantity, destination market, and any spec requirements. Our export team responds with pricing, lead time, and certification documentation.

→

→

→
