HZ-CF-1212 — mobile folding cafeteria table, deployed angled view

— HZ-CF-1212

Mobile folding cafeteria table
12-seat

The HZ-CF-1212 is a 12-seat mobile folding cafeteria table designed for school dining halls running multiple meal services per day. Twelve injection-moulded PP stools (six per side) mount on cantilever arms that fold inward as the table top swings vertical. Two lockable end casters carry the folded unit out of the way in under 90 seconds — one operator, no tools required. HPL top, powder-coated Ø 38 mm steel frame, ABS edge banding. Available in 12 powder-coat frame colours and four standard top finishes.

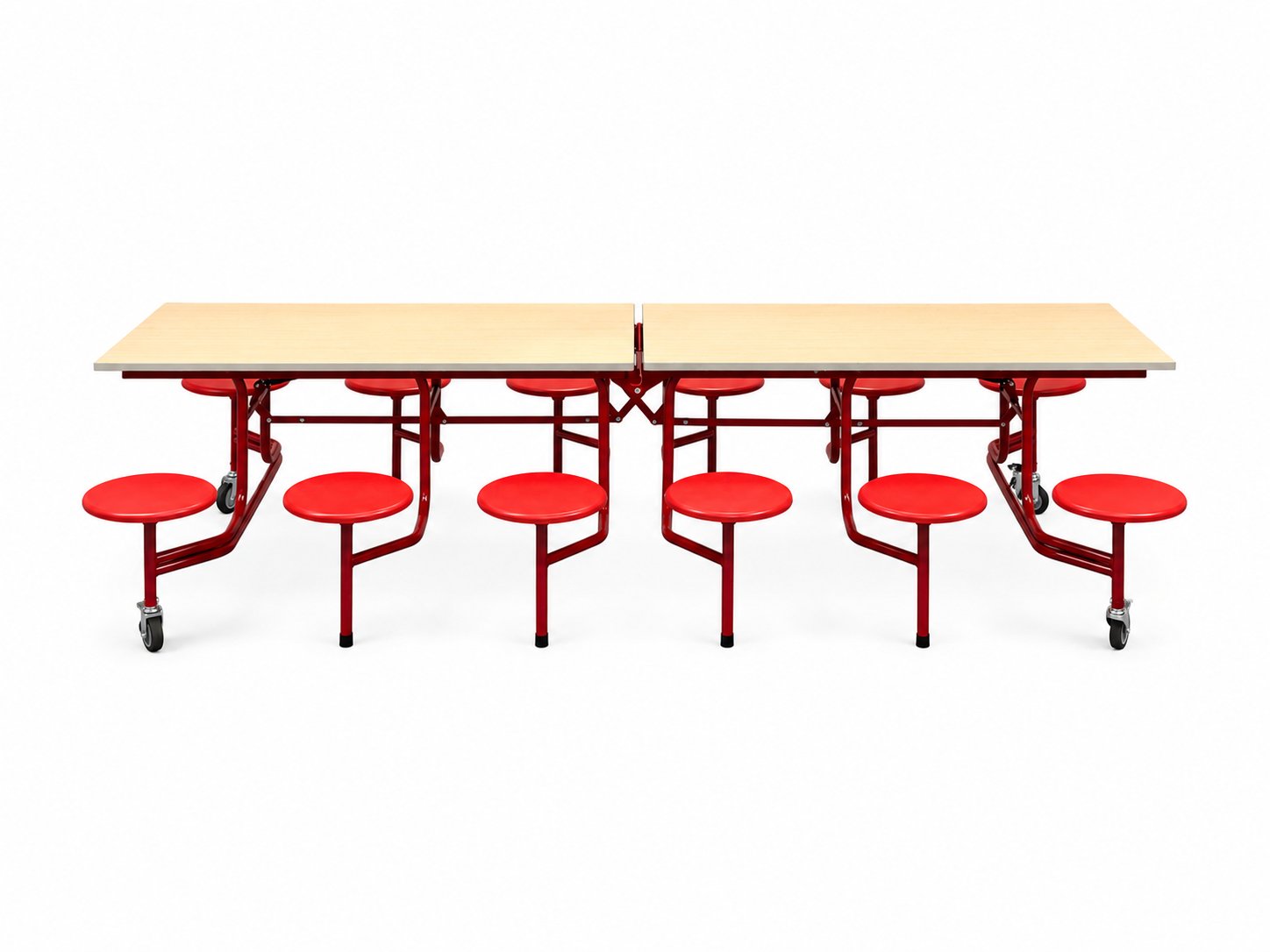

Deployed (L×W×H)

3,300 × 1,500 × 720 mm

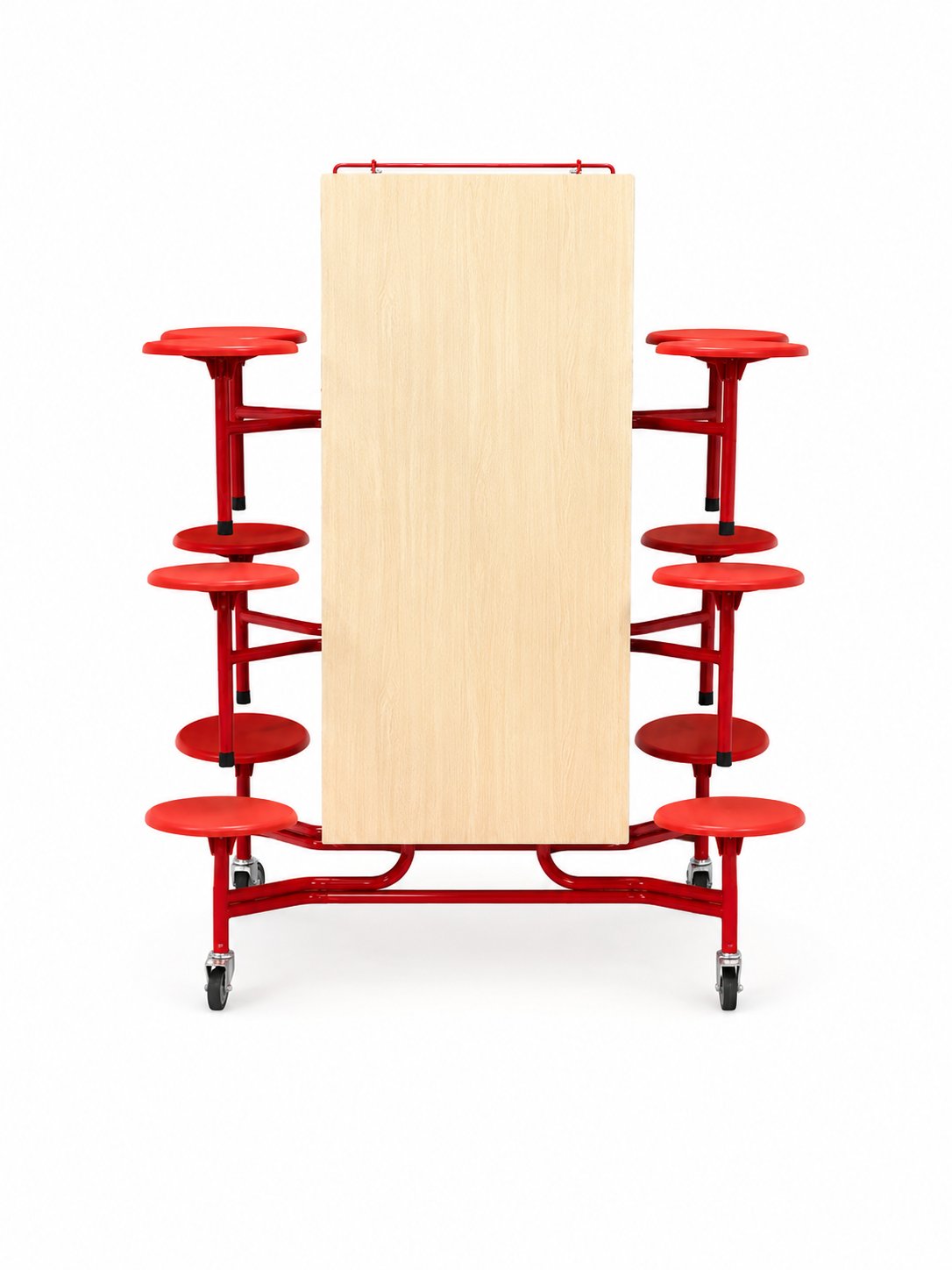

Folded (W×D×H)

~750 × 1,500 × 1,900 mm

Seating

12 stools (6 + 6)

Seat height

430 mm (fixed)

Top material

18 mm HPL + particleboard

Stool material

PP injection-moulded

FoldableMobile12-seatHPL topPP stoolsBIFMA

Request Quote → Request Sample

— Technical specifications

Mobile folding cafeteria table · 12-seat

3,300×1,500 mm

Footprint deployed

720 mm

Table height

Ø 38 mm steel

Frame tube

Epoxy powder coat

Frame finish

18 mm HPL + PB

Top construction

Ø 320 mm PP

Stool seats

Ø 100 mm × 2

Locking end casters

≈ 120 kg

Unit weight

— Engineering highlights

Folds in 90 seconds. Survives 30 years.

— 01

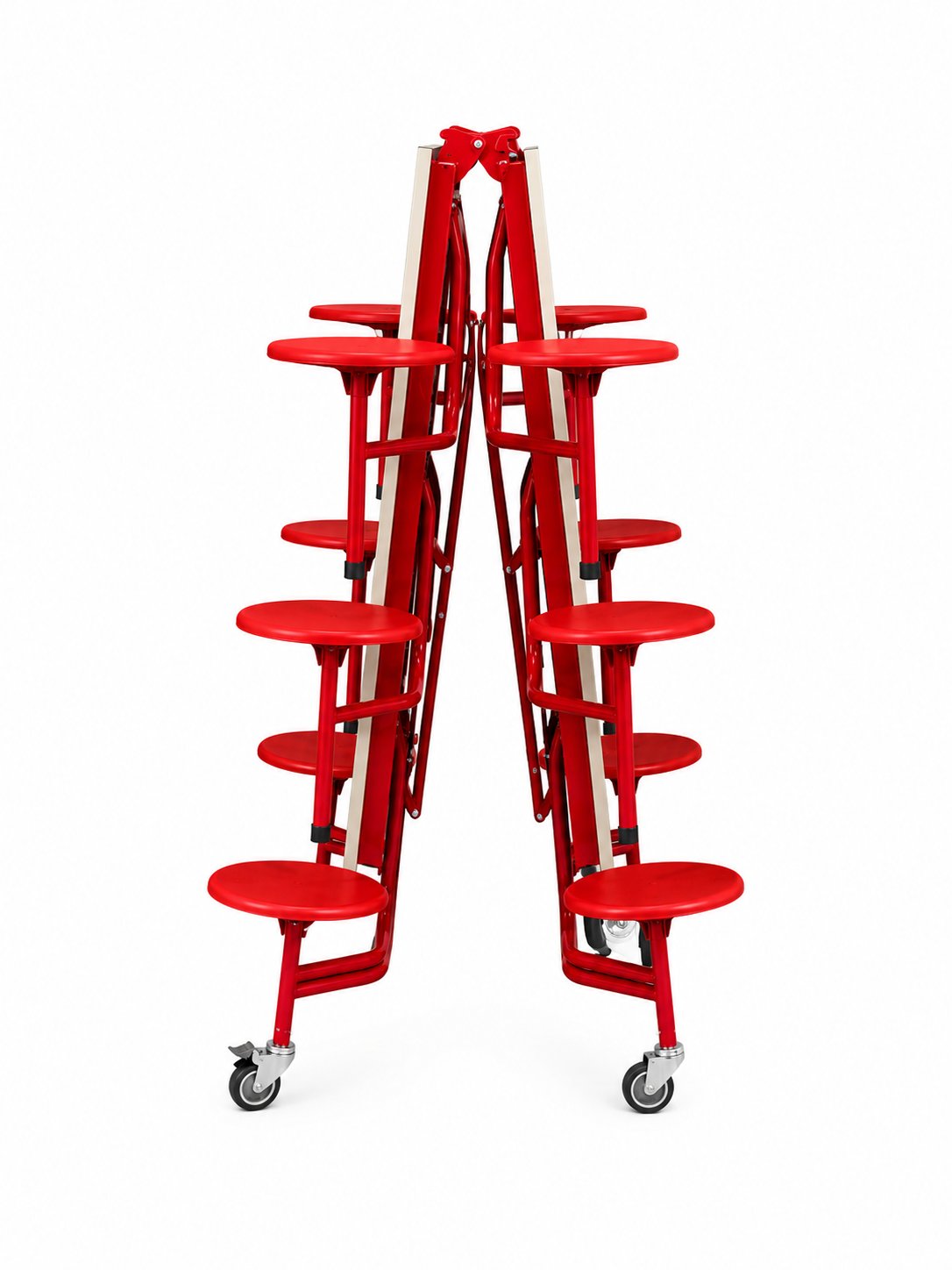

Scissor-action fold mechanism

A single-operator scissor mechanism with overhead lock pin folds the entire 12-seat unit vertical in under 90 seconds. The stool arms swing inward against the underframe; the top tilts to vertical and locks against the safety catch — no tools, no lifting, no second person required.

— 02

Lockable end casters

Two Ø 100 mm twin-wheel casters at one end take the load when the unit is folded. Foot-engaged brakes lock both casters during use; eight ABS protective floor caps on the non-mobile legs absorb impact and prevent floor scuffing during deployment and rotation.

— 03

HPL top, ABS edge banding

The work surface is a 0.8 mm high-pressure laminate over an 18 mm dense particleboard core, finished with 2 mm ABS edge banding. The HPL resists hot service trays, acidic spills, and standard kitchen sanitisers; the ABS edges take the daily impact of cleaning carts and tray returns.

— 04

One-piece PP stools

Each of the 12 stool seats is a single-piece injection-moulded polypropylene disc — no seams, no upholstery, no fasteners on the seating surface. PP resists impact, food acids, and high-pH cleaning solutions; available in eight standard colours that wipe clean of marker, ink, and dye transfer.

Ready to order?

Send your specs — quote in 24 hours.

Share your dining-hall layout, table count, and destination market. Our export team responds with pricing, lead time, container loading plan, and certification documentation.

→

→

→
